Run Chart Excel Template

Run Chart

When it comes to process improvement and data analysis, run charts are an invaluable tool that provides a clear visual representation of data over time. Whether you’re in the healthcare industry, manufacturing, or any field that relies on tracking performance metrics, run charts offer a simple yet powerful way to gain insights and make informed decisions.

What is a Run Chart?

A run chart is a line graph that displays data points in chronological order, often representing a process or system’s performance over time. It helps identify trends, patterns, and variations in data, allowing you to pinpoint areas that require attention or improvement.

Key Features of Run Charts:

  • Chronological Order: Run charts display data points from left to right in the order they occurred. This temporal aspect is crucial for understanding how processes change over time.
  • Data Points: Each data point represents a single observation or measurement. By plotting these points, you create a visual narrative of your process’s performance history.
  • Centerline: Often, a centerline is added to the chart to represent the process’s average or median performance. This line helps you quickly assess whether the process is stable or experiencing significant shifts.

Why Are Run Charts Useful?

  • Detecting Trends: Run charts make it easy to identify upward or downward trends in your data. Recognizing these trends early allows you to take proactive measures.
  • Process Stability: A stable process should exhibit random variation around the centerline. Run charts can help you determine whether your process is stable or if there are unusual patterns.
  • Data-Driven Decision Making: Armed with the insights from a run chart, you can make informed decisions to improve your processes, reduce waste, and enhance efficiency.
  • Continuous Improvement: Run charts are an essential tool in the continuous improvement cycle, enabling organizations to track the impact of changes made to processes and systems.

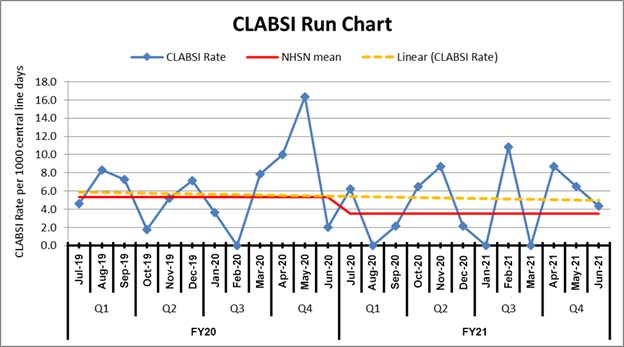

Below you will find a Run Chart template you can use to do your own analysis.
